Sliding Bogie Skeletal Trailer

The award-winning Dennison Sliding Bogie Skeletal Trailer is the market leader in its sector. It is highly regarded for its durability and low unladen weight – under 4,800 kg in standard all steel, with further weight-saving alloy options. It accommodates containers from 20’ to 45’, as well as 13.6m intermodal containers within legal length, swing clearance and wheelbase tolerances.

FEATURE AND BENEFIT SUMMARY

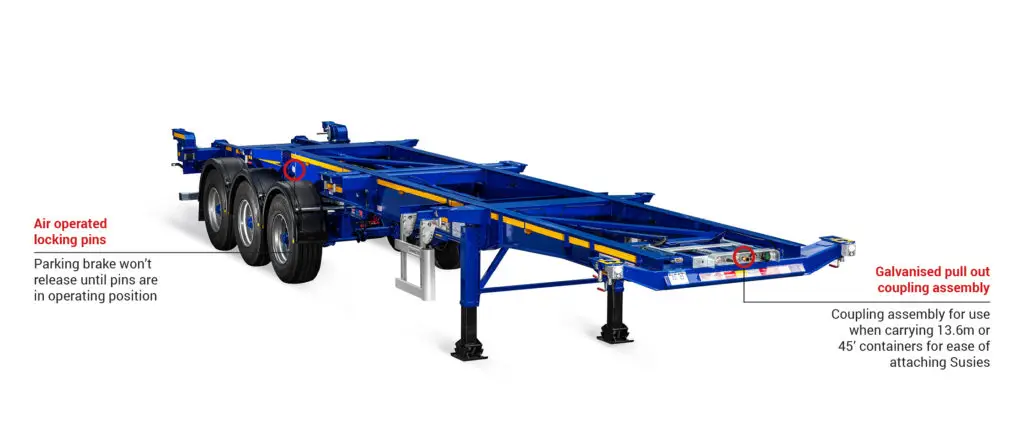

  • Galvanised pull out coupling assembly – coupling assembly for use when carrying 13.6m or 45’ containers for ease of attaching Susies

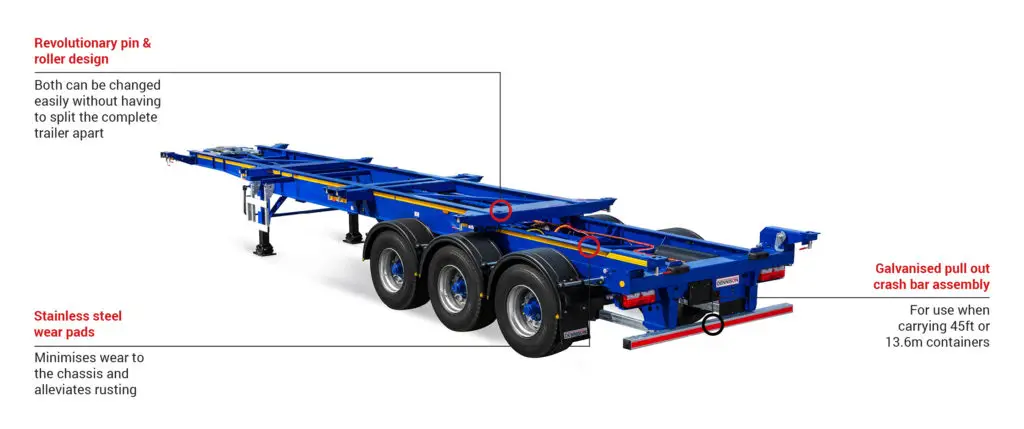

  • Galvanised pull out crash bar assembly – for use when carrying 45′ or 13.6m containers
  • Air operated locking pins – parking brake won’t release until pins are in operating position
  • Patented 14 lock design – allows transportation of all container configurations and sizes
  • Revolutionary pin and roller design– both can be changed easily without having to split the complete trailer apart
  • Stainless steel wear pads – minimise wear to the chassis and alleviates rusting
